Goodrich 120 Volume Pedal String Routing

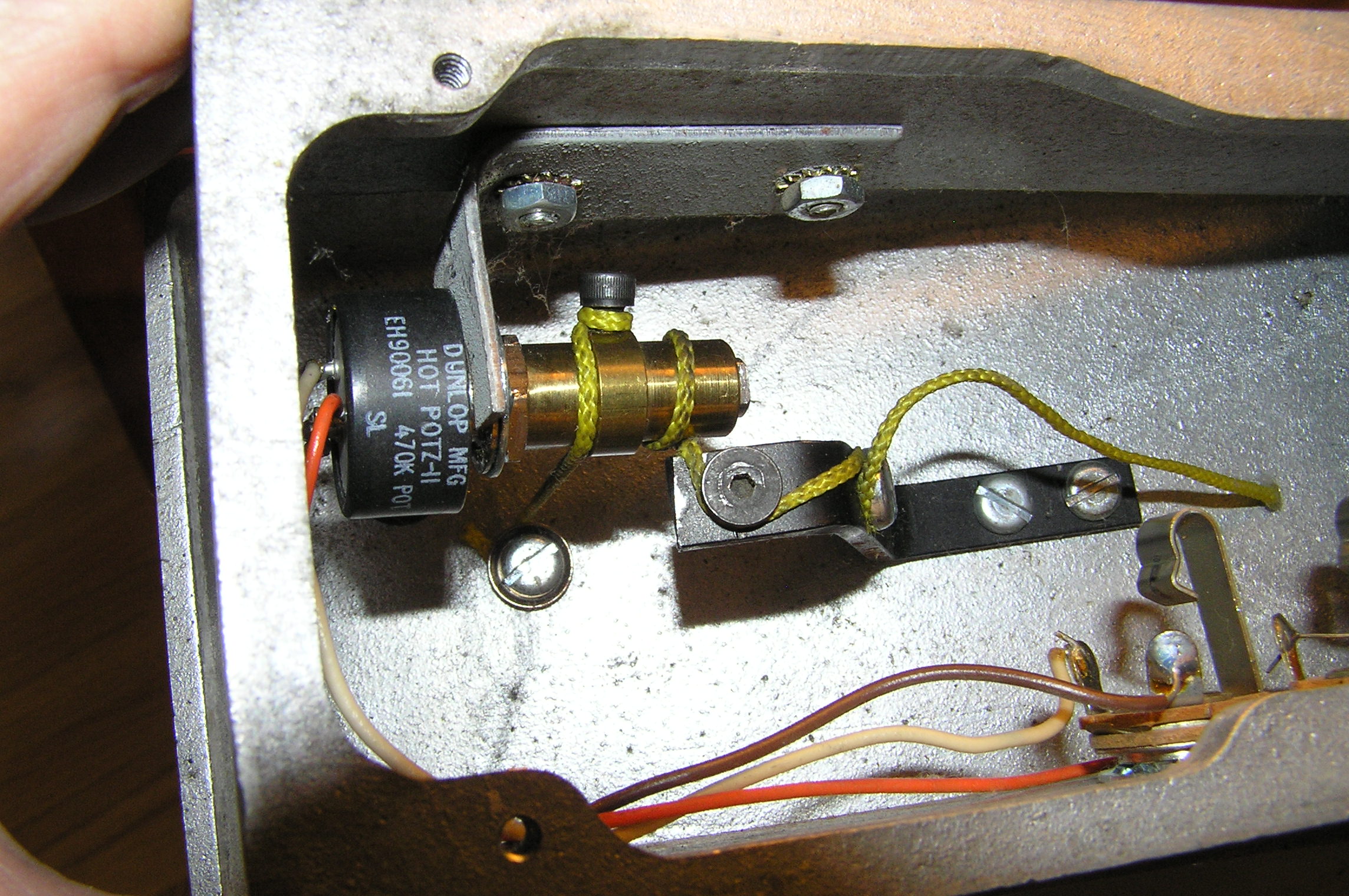

If you need a little help restringing your Goodrich model 120 pot pedal, here it is! Place your mouse over the pictures below to get the titles for them. They are named based on the position of the pedal, Full On , Various On Positions, Full Off. Left click the pictures to get a full size image. There is also a QuickTime movie showing the pot shaft in action and you can view the string as the pot shaft is rotated.

Fully Off Partially On 1 Partially On 2 Partially On 3
Partially On 4 Partially On 5 Partially On 6 Fully On

QuickTime Movie Of Pot String Routing (18MB File!) Right Click If You Want To Save It!
